1
Incoming Material Check
Material information and preparation conditions are reviewed before production starts.
Quality
Quality Control for Reliable Composite Insulation Tubes
WEENOOR focuses on process control, dimensional inspection, and product consistency throughout manufacturing.
Quality Control Approach
From material preparation to final packaging, quality checks are integrated into the manufacturing process.
WEENOOR keeps quality communication close to practical production control: requirement review, approved drawings, material preparation, in-process checking, final inspection, and protected packing.
The purpose is to help buyers confirm that the finished composite insulation tube matches the agreed order requirement before shipment.
Inspection Process
A concise inspection flow for made-to-drawing epoxy fiberglass insulation tube orders.
2

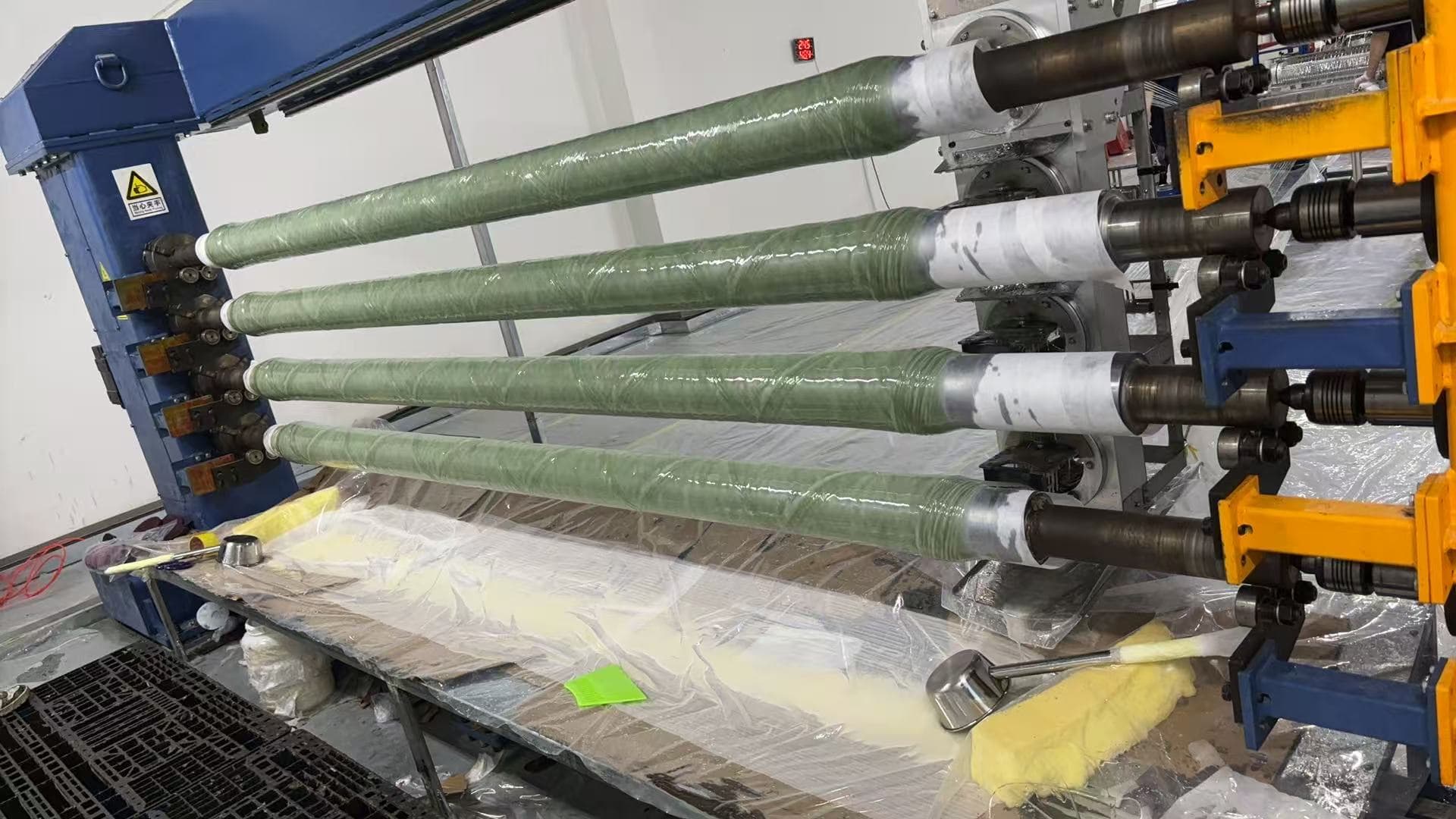

Process Inspection
Production checks are integrated into key manufacturing steps to support consistent output.
3

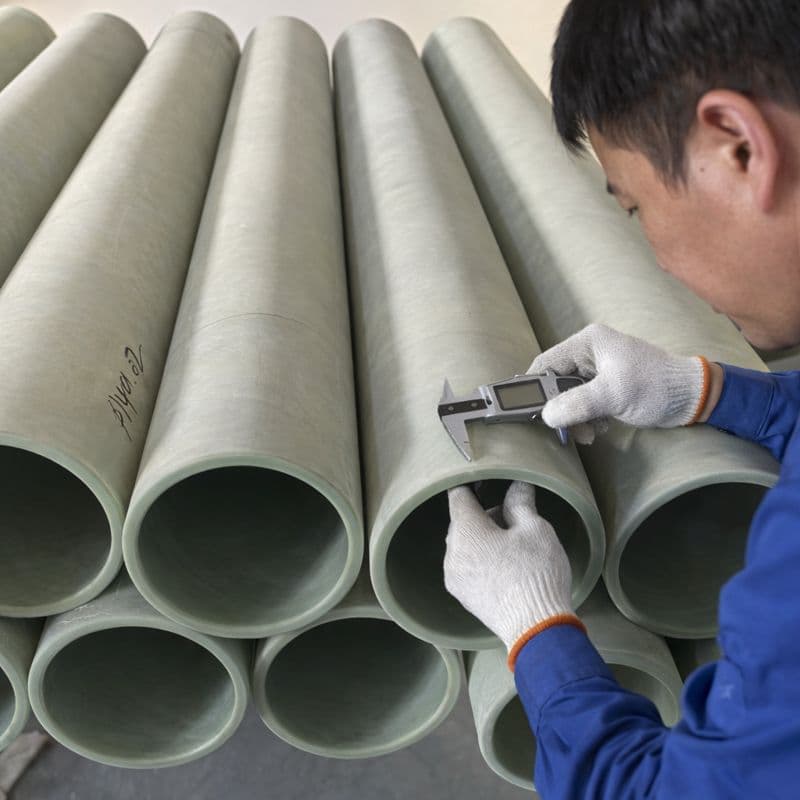

Dimensional Inspection
Tube dimensions and machined features are checked against the approved drawing.
4

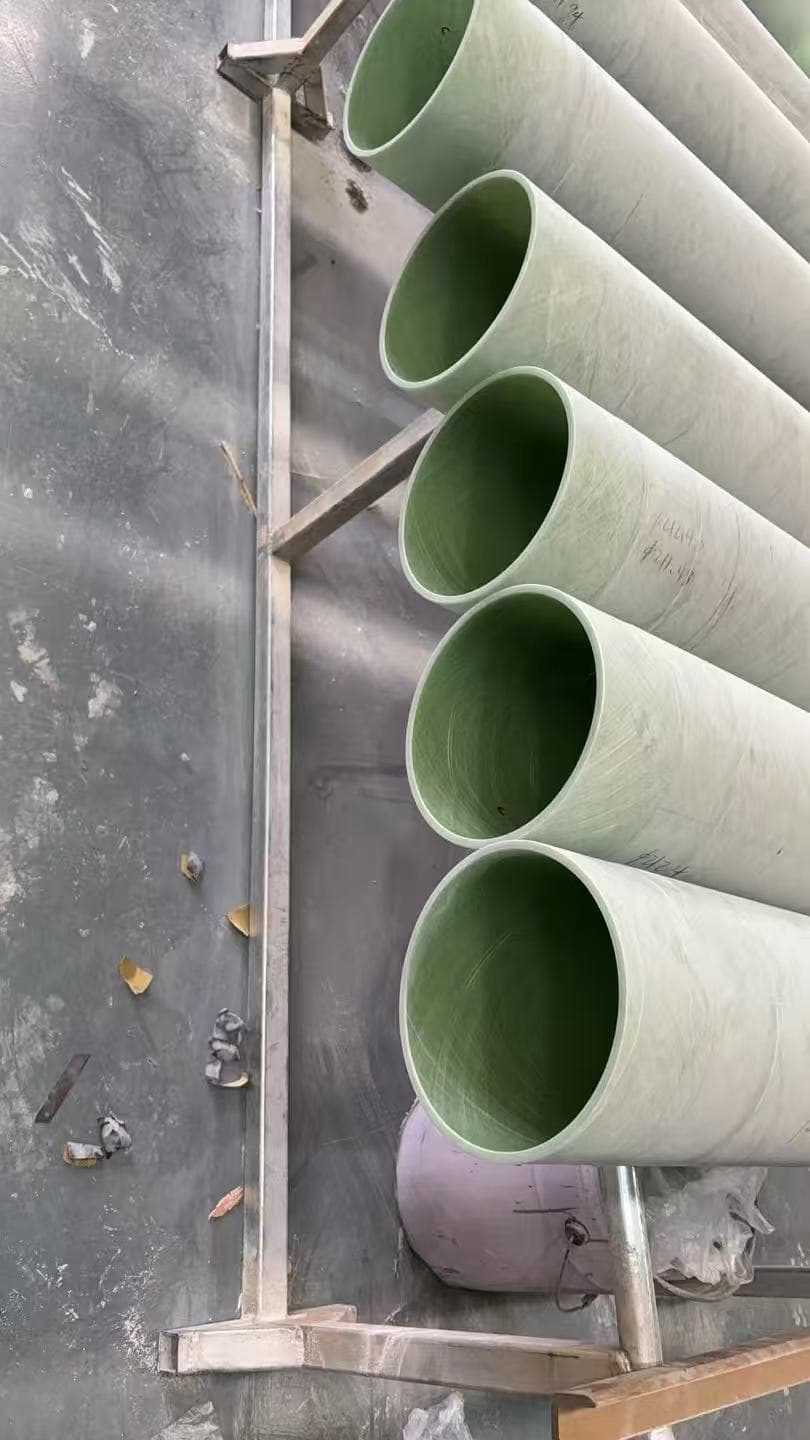

Final Product Inspection
Finished tubes are reviewed for drawing conformity, surface condition, and agreed requirements.
5

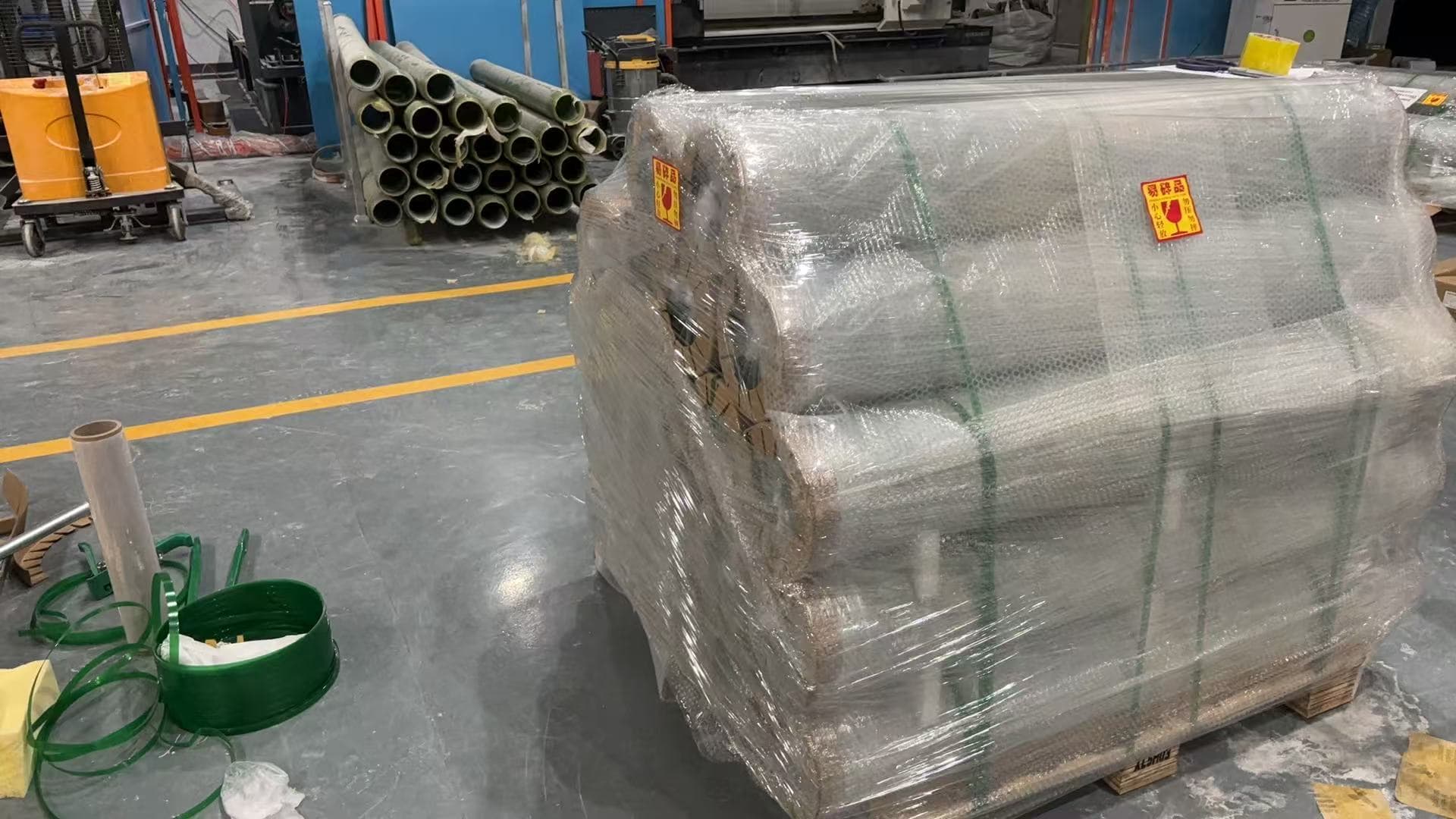

Packaging Check
Approved products are checked before protected packaging and shipment preparation.
Dimensional & Product Verification
The verification focus stays on customer concerns that affect assembly, fit, and final acceptance.
Specific tolerance values are not published here because final requirements depend on the approved drawing, tube size, machining scope, and agreed inspection method.
Product dimensions
ID, OD, wall thickness, length, and key interface dimensions can be reviewed according to the drawing.
Drawing requirements
Inspection communication follows the approved drawing and customer specification, not generic assumptions.
Visual inspection
Surface condition, machining appearance, and visible defects are checked before release.
Final confirmation
Release decisions are tied to agreed inspection scope and order-specific requirements.
Testing Capability
WEENOOR supports confirmed inspection and verification work around dimensions, appearance, and customer-required inspection scope. Additional testing needs should be confirmed according to the product application and order requirement.
Dimensional measurement
Appearance inspection
Drawing conformity review
Customer-required inspection support
Inspection information support when required
Quality Image Gallery
Selected product, inspection, and packaging visuals support purchasing review with practical manufacturing context.
Need a customized insulation tube solution?
Send your drawing or specification for evaluation.
